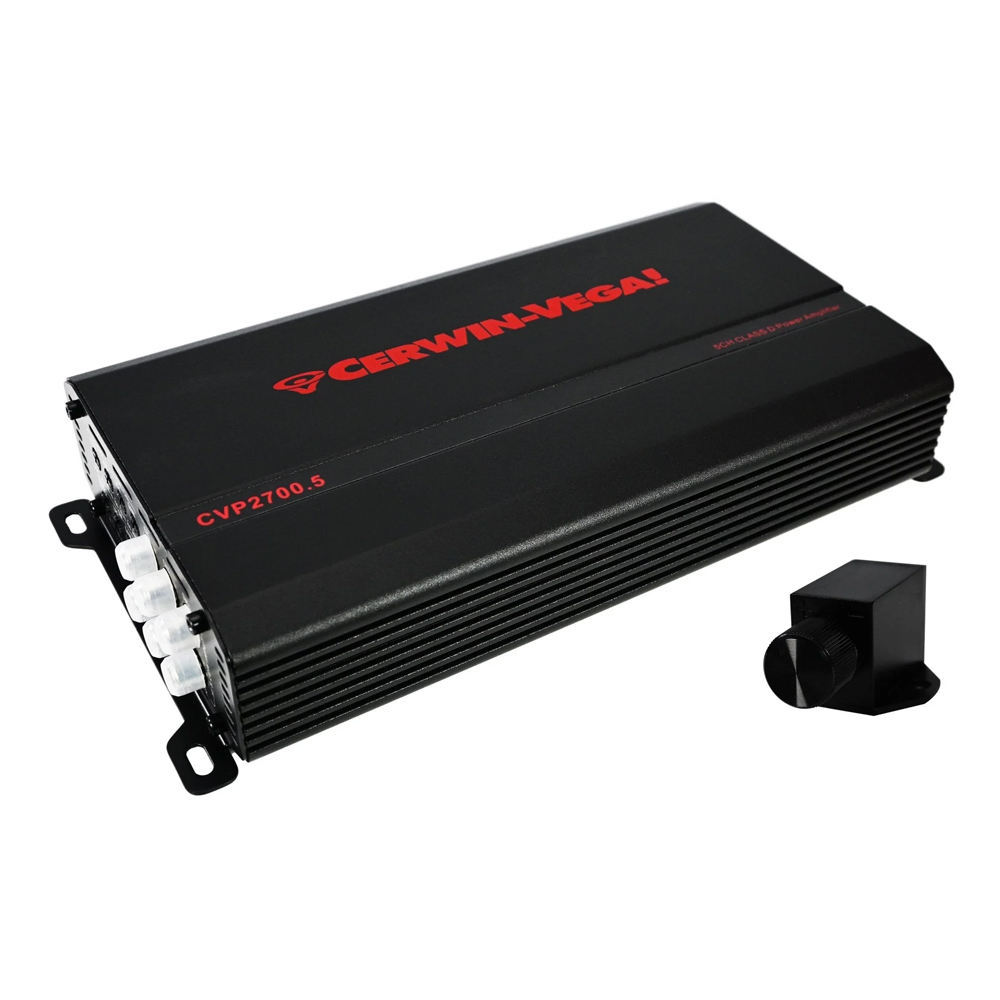

CERWIN VEGA CVP SERIES 5-CH AMPLIFIER 80W RMS X4 + 220W RMS @ 4OHM | 130W RMS X4 + 400W RMS @ 2OHM

5-Channel CVP Series Small Chassis Amplifier Class-D 2700W
The Cerwin-Vega CVP2700.5 CVP Performance 5-Channel Amplifier is the all-in-one power solution for drivers who want full-system performance in a compact, installation-friendly design. Rated at 2700 watts max power, this small chassis 5-channel amplifier delivers the flexibility to power your entire car audio system, including front and rear speakers plus a dedicated subwoofer channel, all from one efficient unit.

Part of the newly redesigned CVP Series Amplifiers, the CVP2700.5 blends power, performance, and affordability into a streamlined package. Engineered with a compact footprint, it fits easily in cars, trucks, and SUVs where space is limited. Its impressive power-to-size ratio ensures strong, clean output without requiring bulky amplifier setups or excessive installation space.

The 5-channel configuration allows you to power door speakers and a subwoofer simultaneously, creating a balanced and dynamic audio experience. Whether upgrading a factory system or building a custom aftermarket setup, this Cerwin-Vega amplifier enhances clarity, improves midrange response, and delivers deep, controlled bass that cuts through road and engine noise.

Equipped with high-level inputs, the CVP2700.5 integrates seamlessly with both factory and aftermarket radios, making it an ideal upgrade for OEM systems. This flexibility allows for simple installation without replacing your existing head unit.

Designed for durability and consistent performance, the Cerwin-Vega CVP2700.5 provides reliable power delivery while maintaining efficient operation. If you’re looking for a compact 5-channel amplifier that simplifies your installation and powers your entire system with authority, the CVP2700.5 is built to exceed expectations.

One amp. Total system control. Legendary Cerwin-Vega performance.

Specifications
• RMS Power Ratings @ 4Ω: 80Wx4+220Wx1
• RMS Power Ratings @ 2Ω: 130Wx4+400Wx1
• Channel Separation: >60dB
• Frequency Response(+/-3bB): 10Hz-30KHz
• S/N Ratio @ A/W 30k: ≥90dB
• Sensitivity: 250mV-6V
• High Pass Filter(-6dB)/Subsonic: 10Hz-250Hz
• Low Pass Filter(-12dB): 52Hz-400Hz
• Bass Boost: 12dB
• Power Protection Indicator
• Short Circuit And Thermal Protection
• Subwoofer Level Remote Control Included
• Fuse: 30A x 3
• Dimensions (LxWxH): 9.65″ x 4.92″ x 1.93″ (245mm x 125mm x 49mm)

FEATURES
– High-Level Inputs with Auto Turn On (4v-8v)
– Full MOSFET DC-DC PWM Power Supply
– Double Sided 2-Layer PC Board
– SMD Technology
– Adjustable Low-Pass and Hi-Pass Filters
– Short Circuit Protection
– Low Impedance Protection
– Reverse Polarity Protection
– Over Heating Protection
