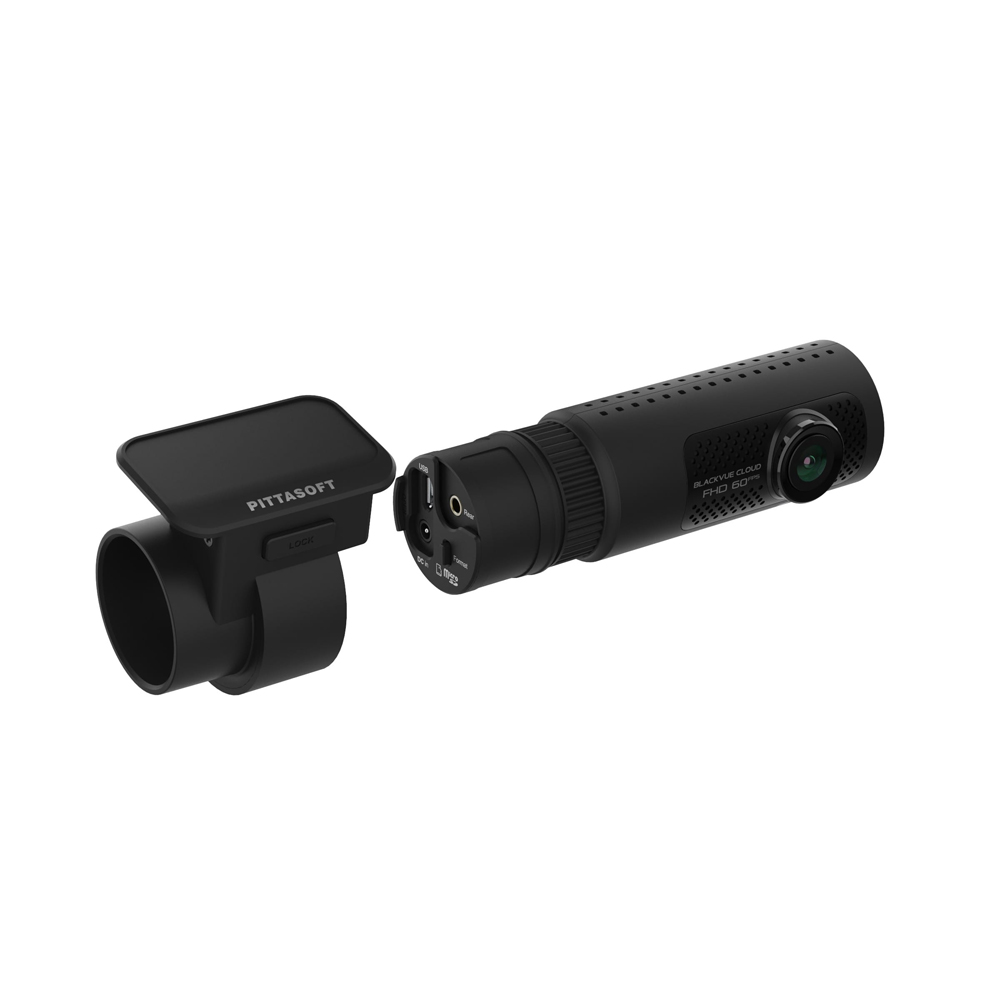

BLACKVUE DR770X-1CH-II FRONT FACING FULL HD (1080) DASHCAM 256 GB

BlackVue DR770X-1CH II features Full HD Sony STARVIS™ image sensor for best image quality under any light.
Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.

Full HD Cloud Dashcams
Powered by Sony STARVIS Sensors

Native Parking Mode
Let your BLACKVUE watch over your vehicle 24/7

What’s Included?
• Front Camera
• Hardwiring Power Cable
• USB-C Power Cable
• USB-C 12V Adapter
• MicroSD Card
• Double-sided tape for the mounting bracket
• Pry tool / Trim Remover
• Cable clips (3 EA)
• Alcohol Pad



Specifications
Model Name DR770X-1CH II
Channel
1CH (upgradable to 2CH)

Highlights
Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module

Product Dimensions
Black /length 135.0mm x Width 101.0mm x Height 37.5mm / 209g

Memory Support
microSD card up to 1TB

Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Parking Mode
YES (hardwiring cable included)

Parking Mode Event Voice Notifications
YES

Imaging Sensor
Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle
Diagonal 139°, Horizontal 116°, Vertical 62°

Resolution Frame Rate
Full HD @60fps
* Frame rate may vary during Wi-Fi streaming

Video Codec
H.264 (AVC)

Image Quality and Bitrate Front/Rear
Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps

Format Free
YES (Adaptive)

Event File Overwrite Protection
YES (up to 50)

SD Card Failure Alert
YES

Scheduled Reboot
YES

Video File Extension
MP4

Wi-Fi
Built-in (802.11 b.g.n)

Cloud Compatible
YES

GPS
Built-in (Dual Band : GPS, GLONASS)

Specifications
Microphone
Built-in

Speaker
Built-in

Impact Sensor
3-Axis Acceleration Sensor

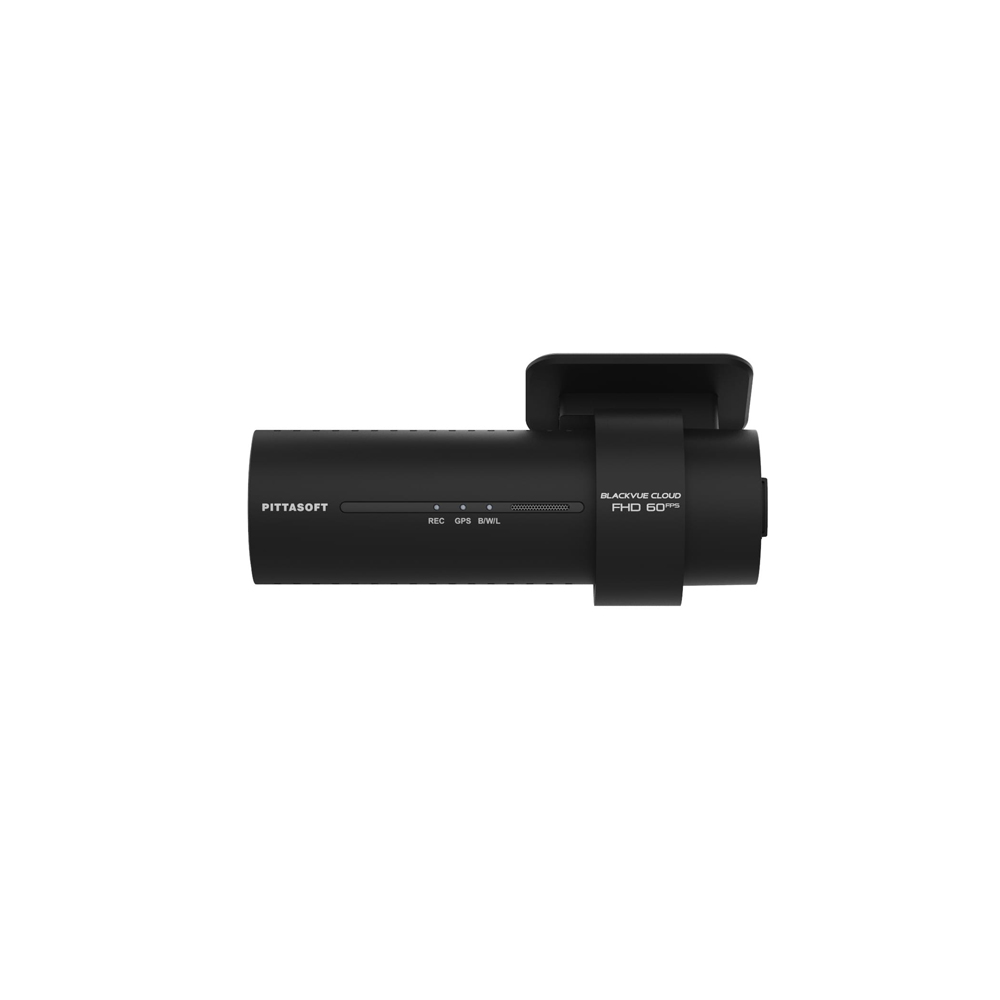

LED Indicators
Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED

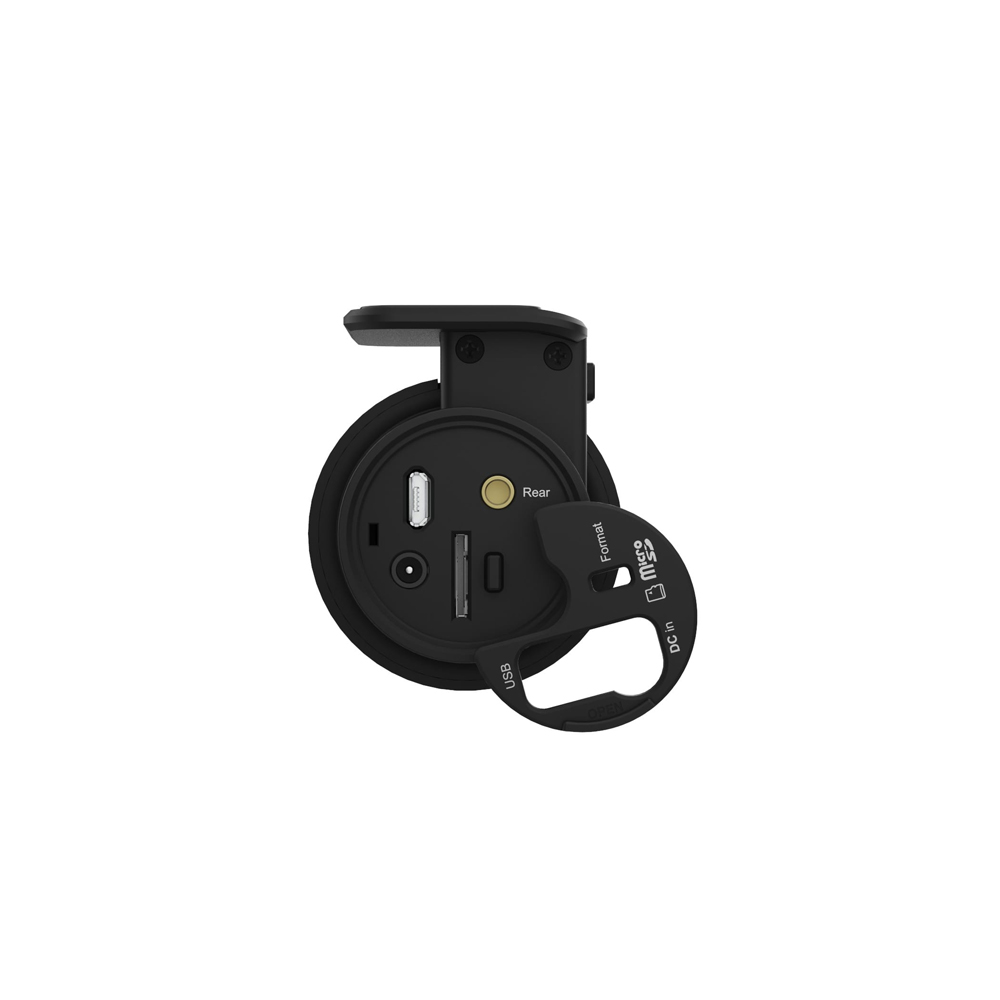

Button
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.

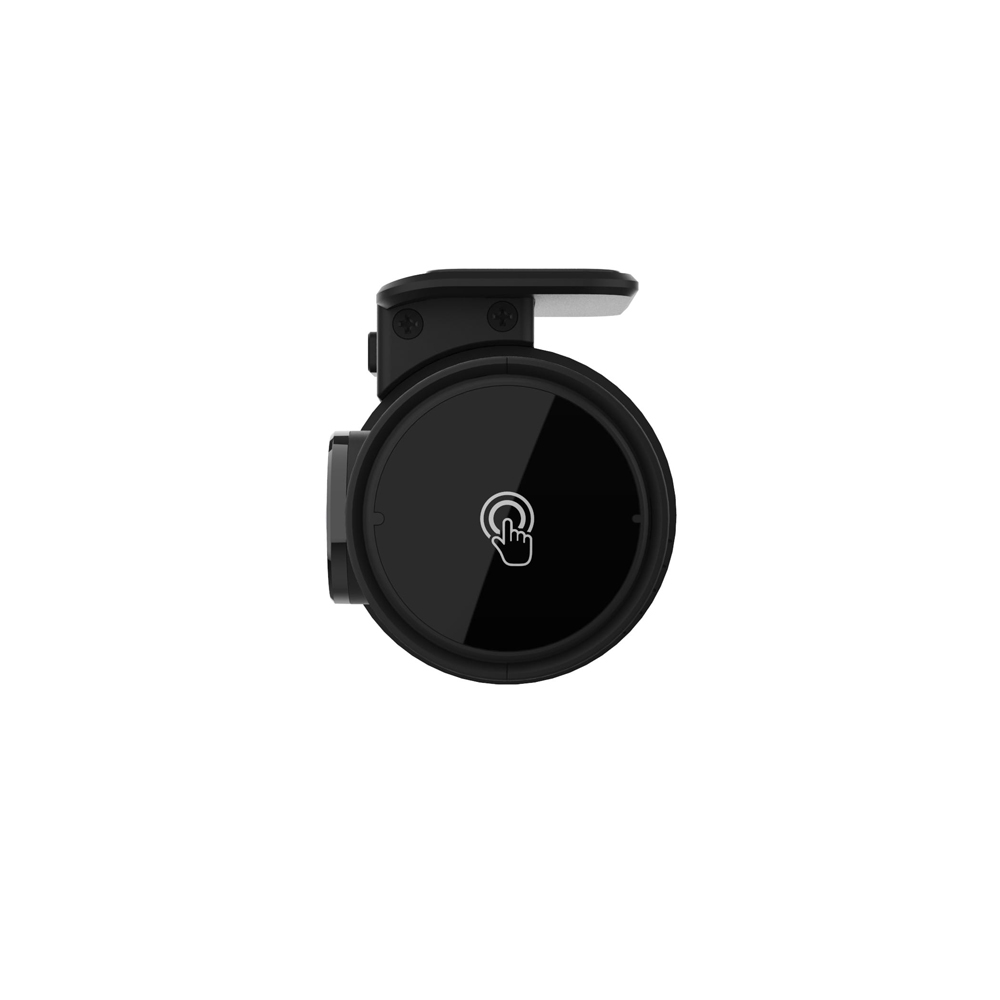

Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.

Operation Temperature
-20 °C − 80 °C (-4 °F − 176 °F)

Storage Temperature
-20 °C − 80 °C (-4 °F − 176 °F )

High Temp Cut Off
Approx. 80 °C (176 °F)

Backup Battery
Built-in supercapacitor

Input Power
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour
Normal Mode (GPS On/1CH): Avg. 240mA / 12V
Parking Mode (GPS Off/1CH): Avg. 190mA / 12V

* Actual power consumption may vary depending on use conditions and environment

Certifications
FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC

Software
BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher

Application
BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher

Others
Adaptive Format-Free File Management System

Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)
