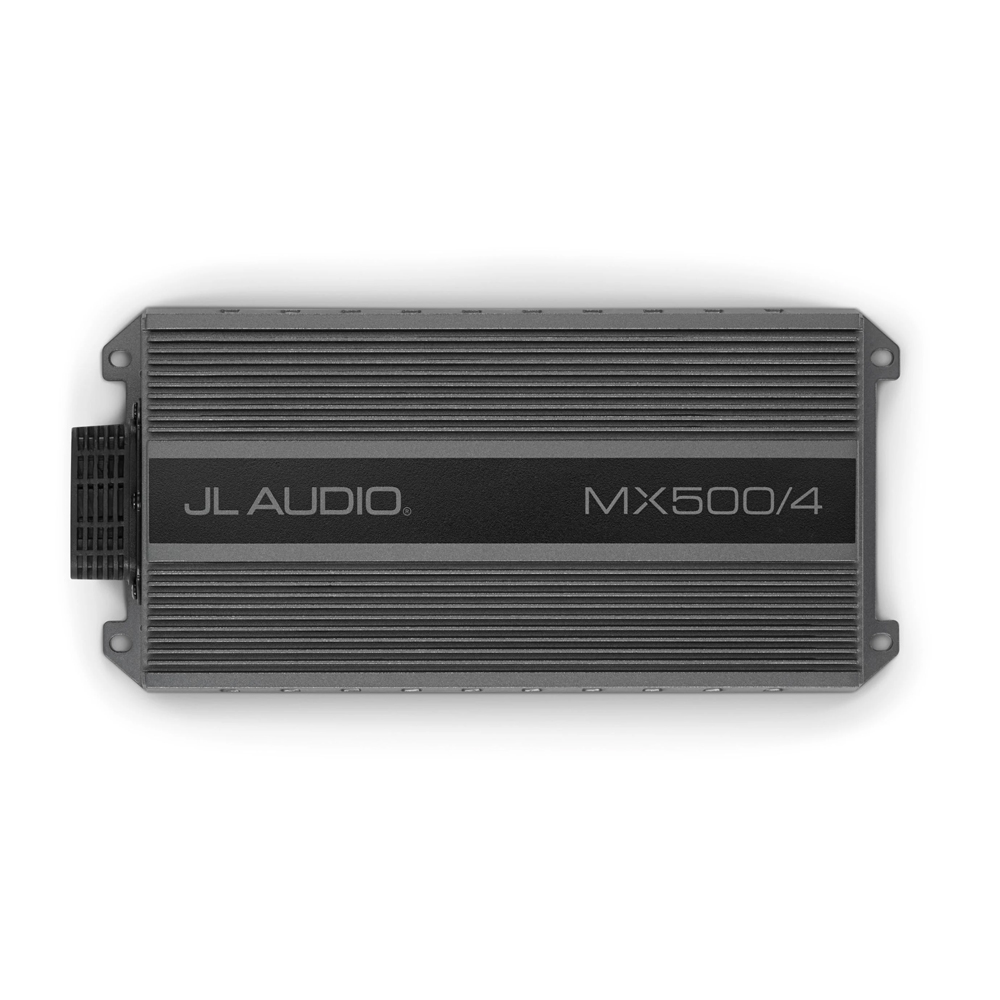

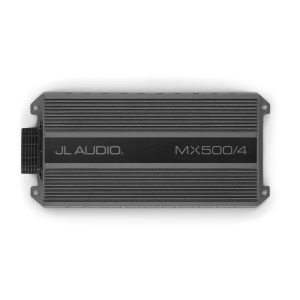

JL AUDIO MX500/4 4 CHANNEL FULL RANGE AMPLIFIER 500 WATTS

4-Channel Class D Full-Range Amplifier, 125 W x 4 @ 2 O / 70 W x 4 @ 4 O – 14.4V

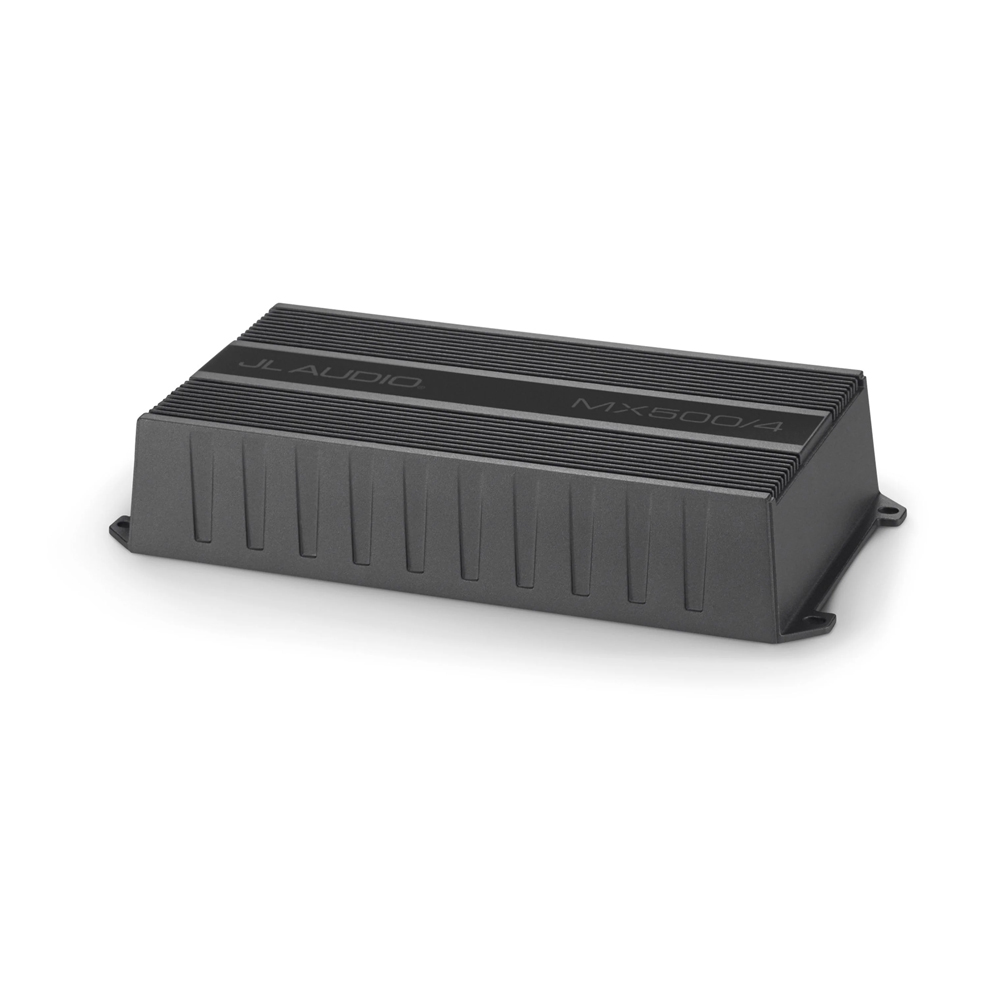

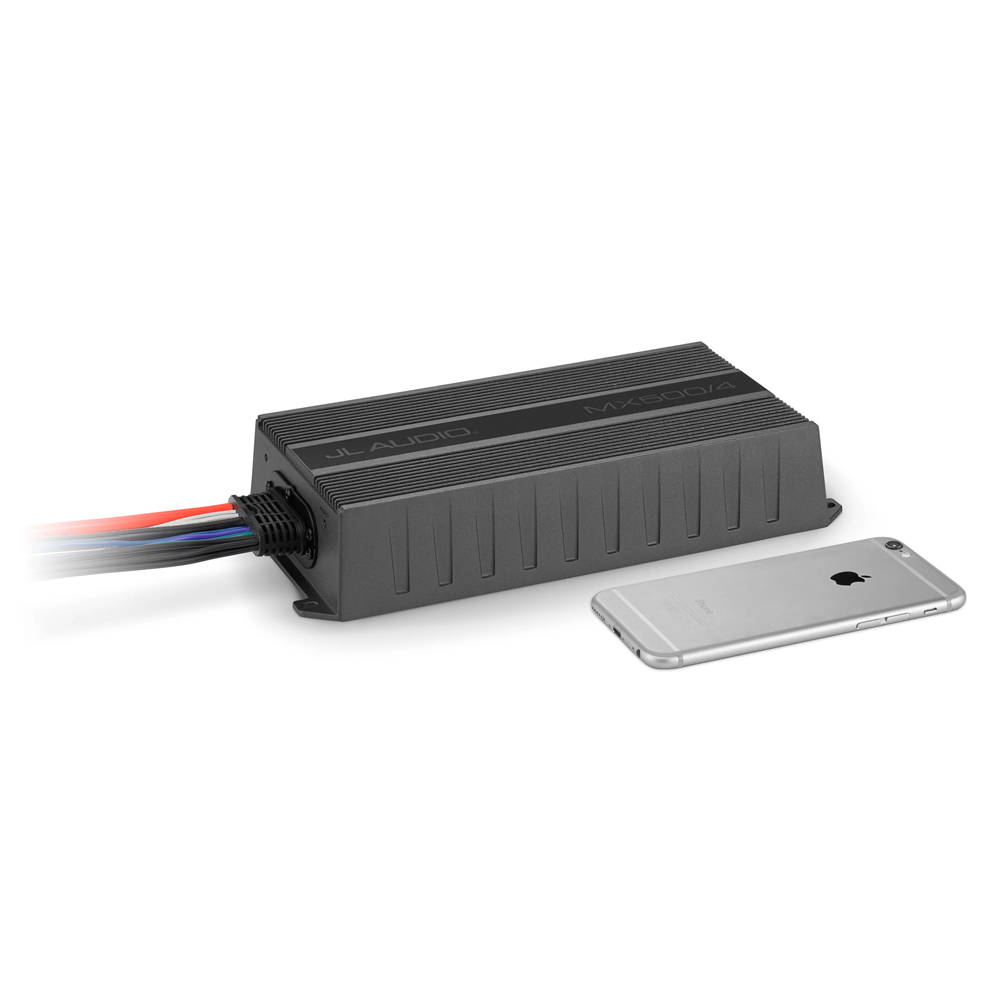

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

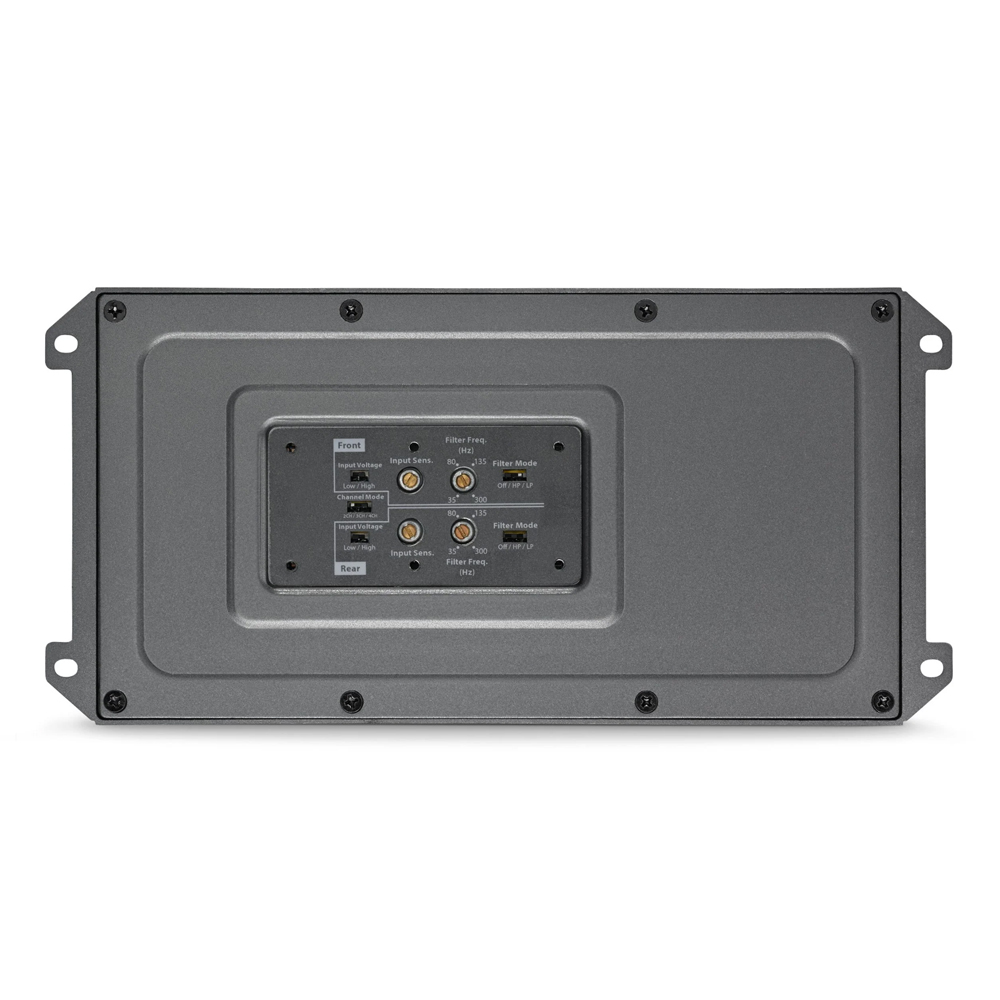

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Rated Continuous (RMS) Power @ 14.4 V
@ 4 O 70 W RMS x 4
@ 2 O 125 W RMS x 4
Bridged @ 4O 250 W RMS x 2

General Specifications
Frequency Response 20 Hz – 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >88 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >70.5 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 O >92 / 50 Hz
Damping Factor @ 2 O >43 / 50 Hz
THD+N @ Rated Power <1% @ 2 O per Ch. Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
