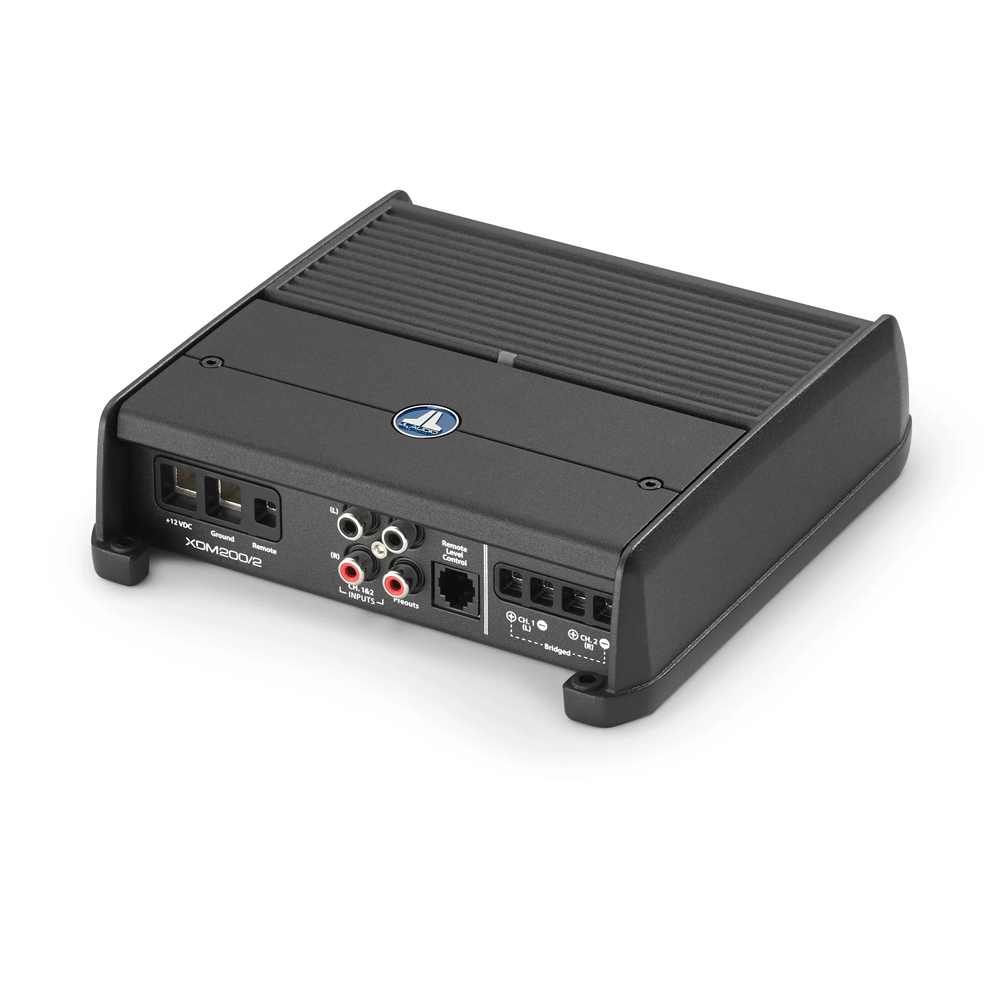

JL AUDIO XDM200/2 2 CHANNEL CLASS D FULL RANGE CAR & MARINE AMPLIFIER 200 WATTS

2-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 2 @ 2 O / 75 W x 2 @ 4 O – 14.4V




The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier’s level can be adjusted directly from the driver’s seat or cockpit.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Rated Continuous (RMS) Power @ 14.4 V
@ 4 O 75 W RMS x 2
@ 2 O 100 W RMS x 2
Bridged @ 4O 200 W RMS x 1

General Specifications
Frequency Response 12 Hz – 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 O >150 / 50 Hz
Damping Factor @ 2 O >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 O per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 20 A (AFS, AGU or MaxiFuse™)
