ITM Concrete Lifting Clutch Panel Lifter 2.5T

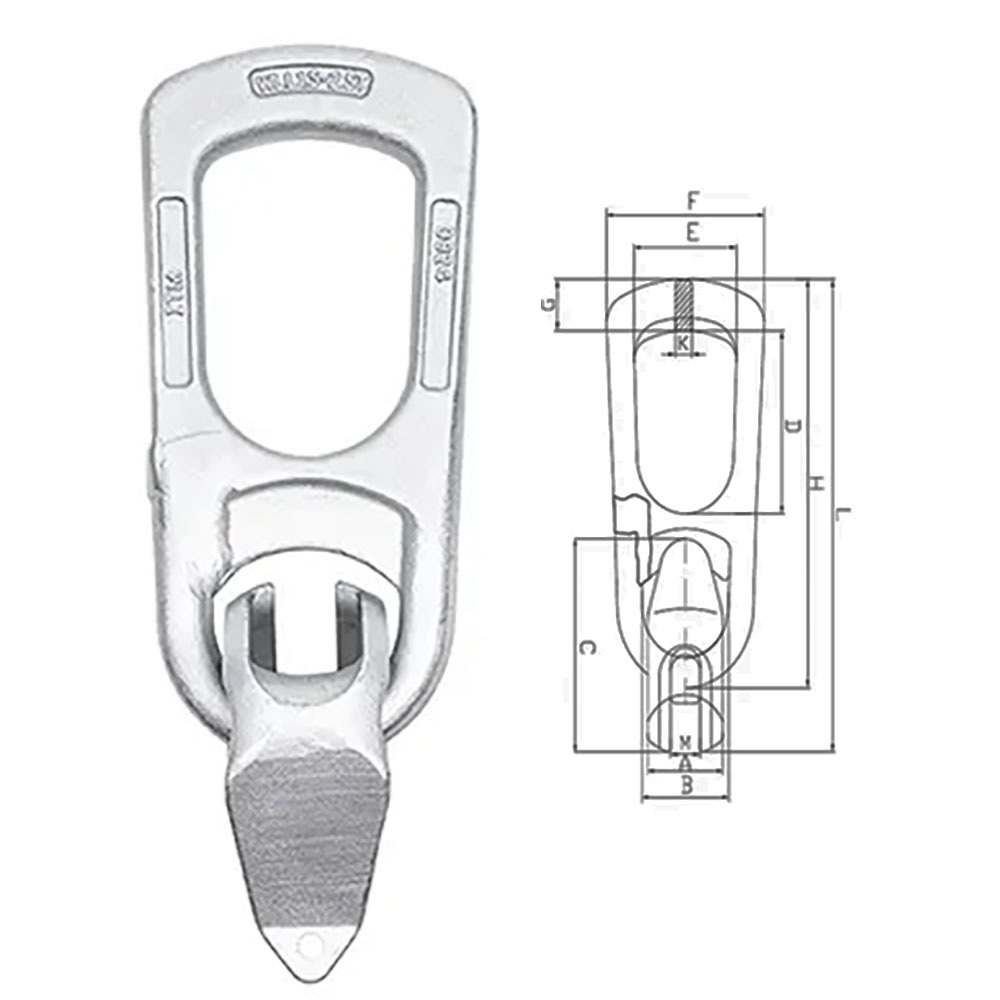

TM9814-00025 | ITM Concrete Lifting Clutch Panel Lifter 2.5T Features • Specifically designed for lifting precast concrete elements with an embedded pin • Easily engages under load ensuring proper connection • Simple clutch release when lifting completed • Available in working load limits ranging from 1.3t to 20t • Tested and certified to AS 3850.1 Specifications • W.L.L. (t): 2.5 • B.L. (t): 10 • Dimension A (mm): 41 • Dimension B (mm): 49 • Dimension C (mm): 102 • Dimension D (mm): 85 • Dimension E (mm): 57 • Dimension F (mm): 88 • Dimension H (mm): 188 • Dimension M (mm): 16 • Dimension L (mm): 227 • Dimension G (mm): 27 • Dimension K (mm): 14 • Weight (kg): 1.3
