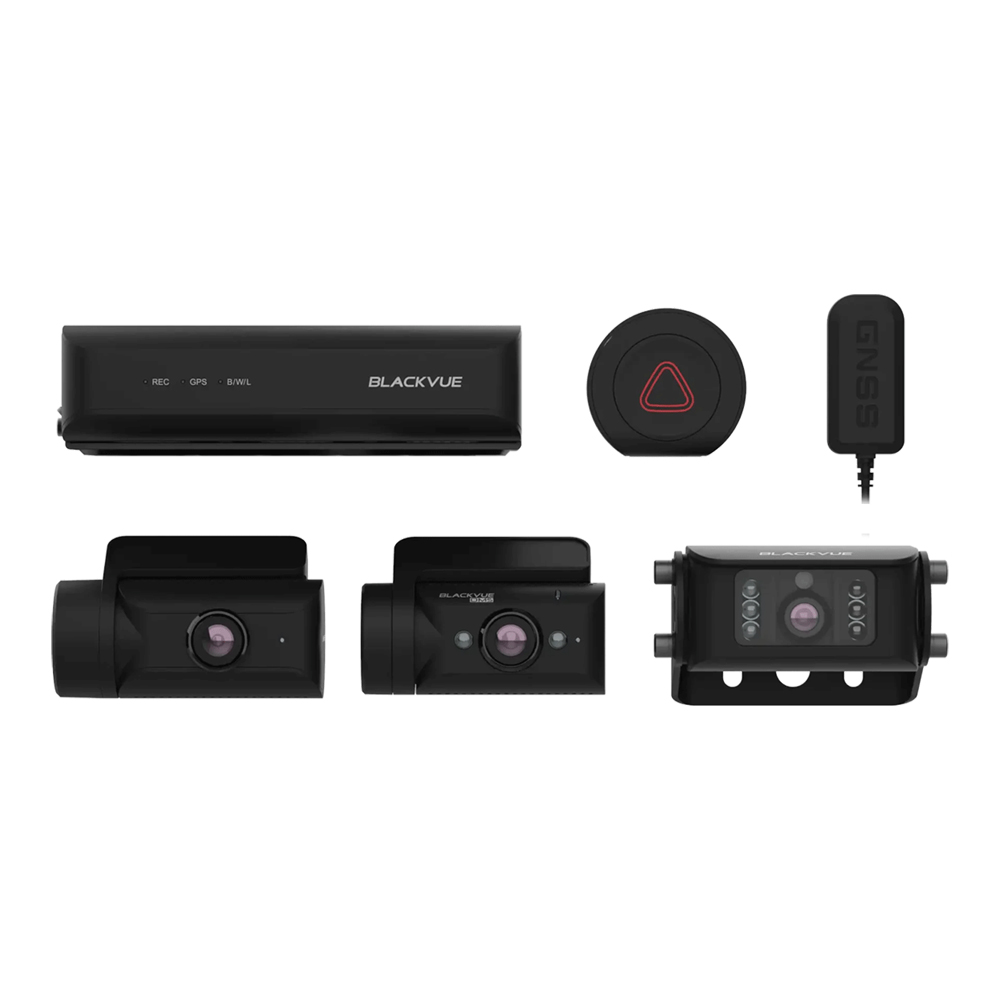

BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX DMS TRUCK 1080 HD DASHCAM 64 GB

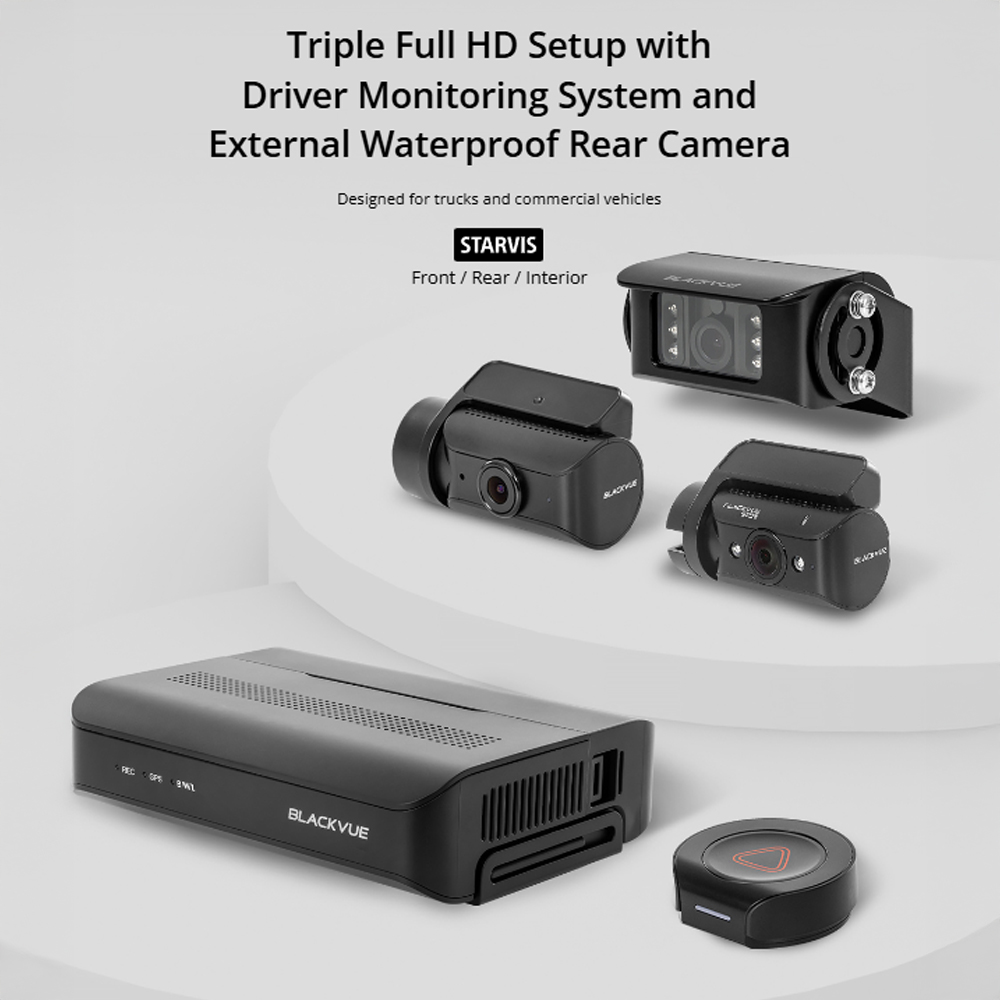

BlackVue DR770X Box-3CH DMS Truck Pro combines triple camera protection and AI-powered Driver Monitoring System.

Specifications:
Model Name: DR770X Box-3CH DMS Truck Pro
Channel: 3CH
Highlights : Full HD + Full HD + Full HD (Front + DMS + Rear Truck), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions: Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g
Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g
DMS : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g
Rear Truck : Black / Length 81mm x Width 56.6 mm x Height 51 mm / 220g
EB-1(Wireless Button) : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g

Rear Camera Connection: Coaxial cable
Memory Support: microSD card up to 512GB
Recording Modes: Normal recording, Event recording (when impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode: YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor: Front : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
DMS : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear Truck : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle: Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
DMS(RC1-DMS-C) : Diagonal 109°, Horizontal 94°, Vertical 52°
Rear Truck(ERC-1C) : Diagonal 116°, Horizontal 97°, Vertical 51°
Resolution Frame Rate: Front / DMS / Rear Truck
Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.
Video Codec: H.264 (AVC)
Image Quality and Bitrate Front/Rear: Front / DMS / Rear Truck
Highest(Extreme): 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
Format Free: YES (Adaptive)
Event File Overwrite Protection: YES (up to 51)
SD Card Failure Alert: YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi: Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS External (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED
Front : Front & Rear Security LED
EB-1 : Operating/Battery low voltage LED
Rear Camera IR Illumination DMS: 940nm (2 Infrared (IR) LEDs)
Rear Truck: 940nm (6 Infrared (IR) LEDs)
Button EB-1 button : Press the button – manual recording.
Operation Temperature -20°C – 70°C (-4°F – 158°F )
Storage Temperature -20°C – 80°C (-4°F – 176°F )
High Temp Cut Off Approx. 75 °C (167 °F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (GPS On/3CH) : Avg. 750mA/12V Parking Mode (GPS Off/3CH) : Avg. 600mA/12V *Approx.40mA increase in current when DMS Camera IR LEDs are ON. *Approx.60mA increase in current when Rear Truck Camera IR LEDs are ON *Actual power consumption may vary depending on use conditions and environment.
Certifications Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC
Software BLACKVUE Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BLACKVUE Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application BLACKVUE Application * Android 8.0 or higher, iOS 13.0 or higher
Others Adaptive Format Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)
